Injection Blow Molding Machine

Top Quality Injection Blow Molding Machine From 3ML to 1000ML

IBM45 Injection Blow Molding Machine

Price: Chat Online
After-Sale Services: 7*24 Hours
Payment Method: T/T or L/C

Transportation Method: By Sea
Port Of Shipment: Shanghai

Tips: We have many models of machines, and there are also many machine parameters involved. Due to different voltage standards in different countries, we suggest that you can consult us directly online or send us detailed requirements.

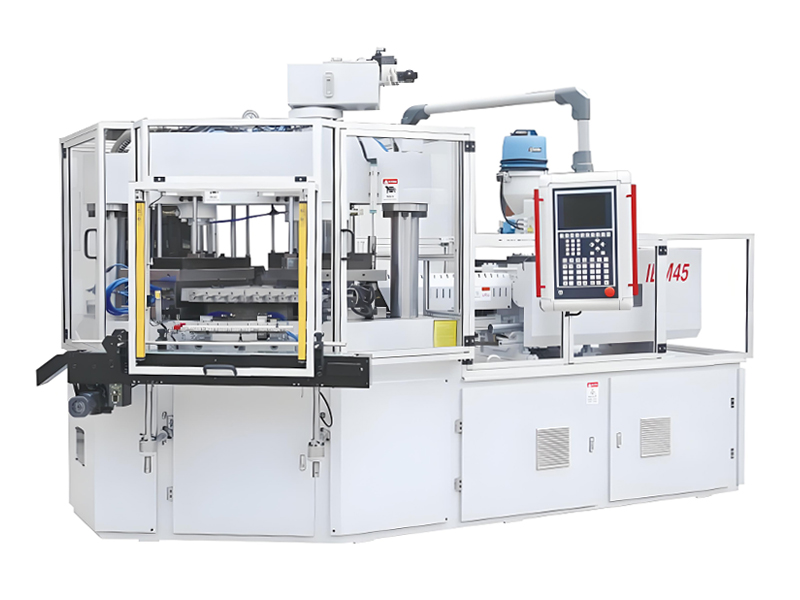

IBM45 Injection Blow Molding Machine


lBM45 main technical parameters

ltemUnitData
Dia. of screwmm45
Injection weightG260
Barrel heating powerKW10
Electric heating control areaqty3
Clamping force of injection moldkn450
Clamping force of blow moldkn78
Opening stroke of mold platenmm220
Max. platen size of mold (L*W)mm560*390
Min. mold thickness (H)mm240
Motor powerKW25
Heating power of mouldKW4
System pressureMpa14
Pressure of compressed airMpa≥1.0
Displacement of compressed airm³/min≥0.8
Consumption of cooling waterm³/hr3
Dimension of machine (L*W*H)mm3500*1400*2300
Machine weightT6.0
Volume of formable productML2-1200
Height of formable productmm≤240
Dia. of formable productmm≤90
Total powerKW39
