Injection Blow Molding Machine

Top Quality Injection Blow Molding Machine From 3ML to 1000ML

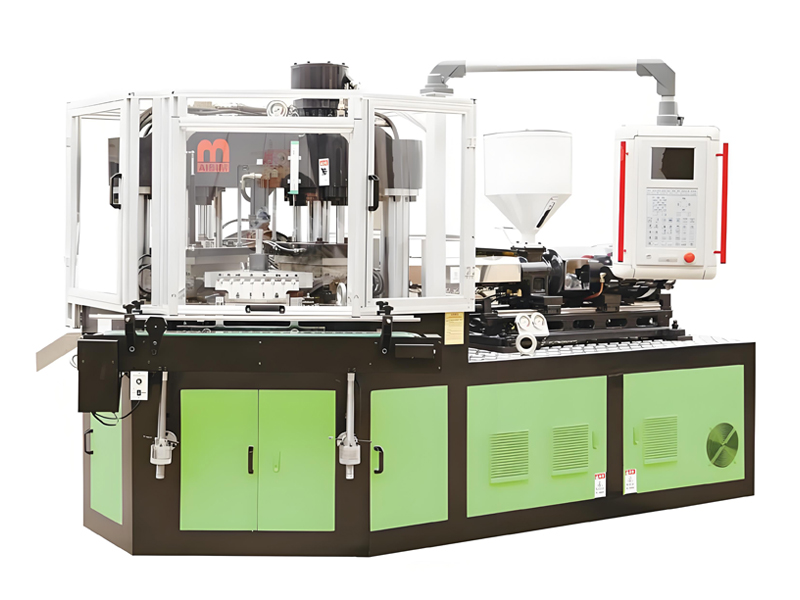

IBM35 Injection Blow Molding Machine

Price: Chat Online
After-Sale Services: 7*24 Hours
Payment Method: T/T or L/C

Transportation Method: By Sea
Port Of Shipment: Shanghai

Tips: We have many models of machines, and there are also many machine parameters involved. Due to different voltage standards in different countries, we suggest that you can consult us directly online or send us detailed requirements.

IBM35 Injection Blow Molding Machine


lBM35 main technical parameters

ltemUnitData
Dia. of screwmm40
Injection weightG176
Barrel heating powerKW7.2
Electric heating control areaqty3
Clamping force of injection moldkn350
Clamping force of blow moldkn40
Opening stroke of mold platenmm220
Max. platen size of mold (L*W)mm420*340
Min. mold thickness (H)mm180
Motor powerKW15
Heating power of mouldKW2.8
System pressureMpa14
Pressure of compressed airMpa≥1.0
Displacement of compressed airm³/min≥0.8
Consumption of cooling waterm³/hr3
Dimension of machine (L*W*H)mm3100*1200*2200
Machine weightT4
Volume of formable productML2-1000
Height of formable productmm≤220
Dia. of formable productmm≤80
Total powerKW25
