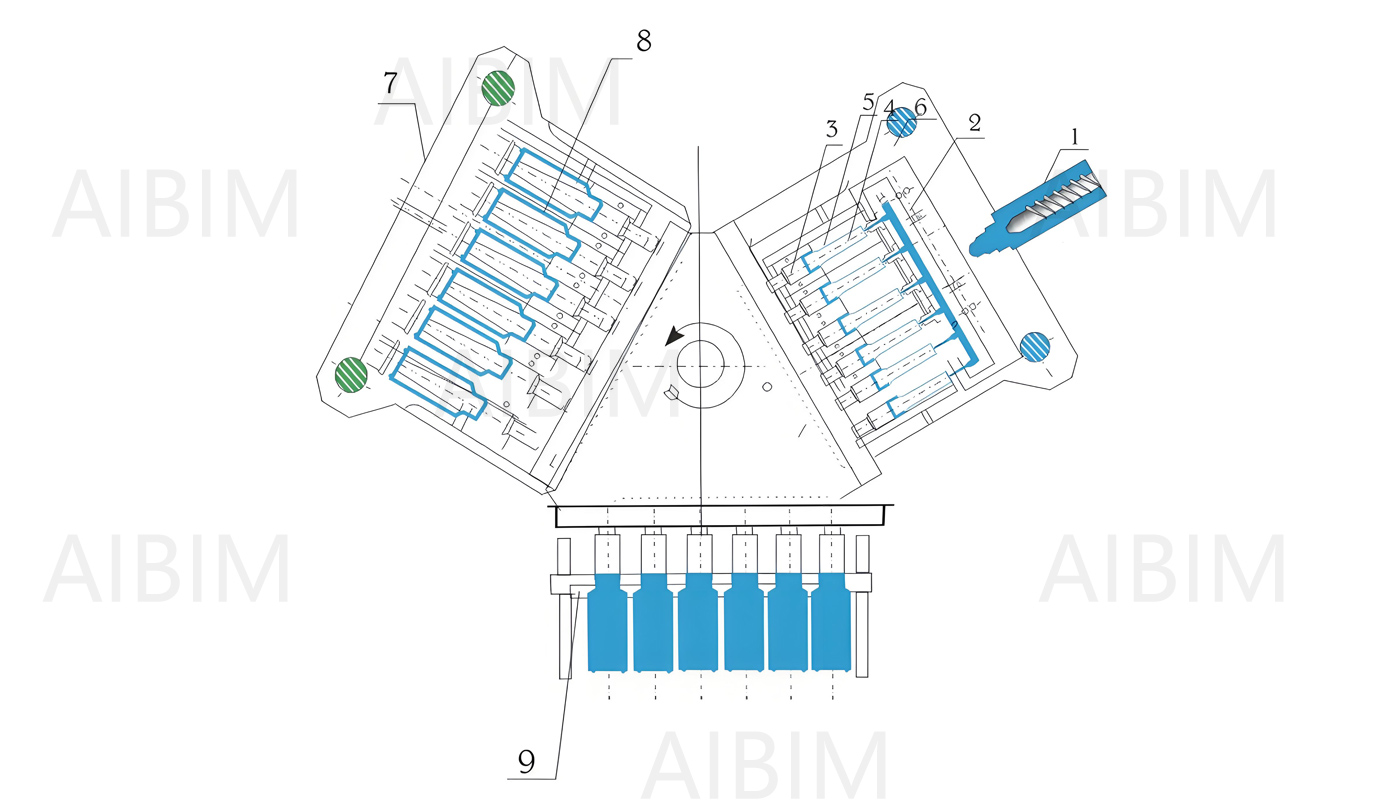

Injection Blow Molding Machine

Item	Name	Item	Name
1	Stock Preparation / Injection Device	6	Injection Station
2	Hot Runner	7	Blow Station

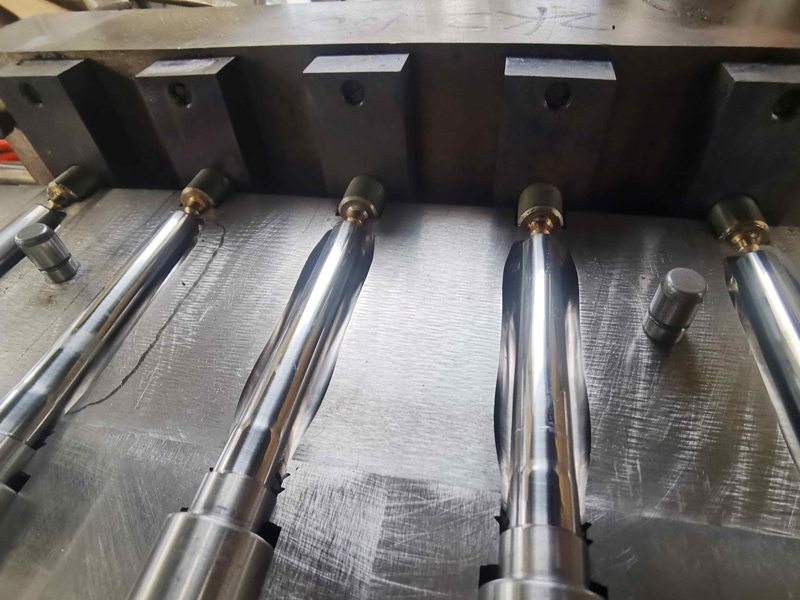

3	Core Rod	8	Blow Mold
4	Bottle Preform	9	Stripping Station
5	Injection Mold

The comparison of injection blowing and extrusion blowing

No.	Injection Blowing	Extrusion Blowing
1	1% Bottle weight will change about 1%	Bottle weight will change about 3%
2	Uniformity wall thick	The change of wall thick is about 10-20%
3	None kerf	Not only has the kerf but also weaken the intension ofthe bottle bottom
4	Good convexity at the bottom of the bottle	Bad convexity at the bottom of the bottle
5	None flash	20-40% fashes
6	Can not produce very thin thickness product	Can use MOOG to adjust the thickness
7	Not sensitive to the environment change	Need more adjustments during the production
8	Multicavity, high output, smooth bottle neck	Less cavities, low output, uneven bottle neck
9	High mould lifetime, suitable for long time production but high price	Short mould lifetime, suitable for short time production and low price
10	Compact machine system, less occupation of land	Need more assistant machines, more occupation ofland
11	Difficult of ellipse plastic container	Easier to shape

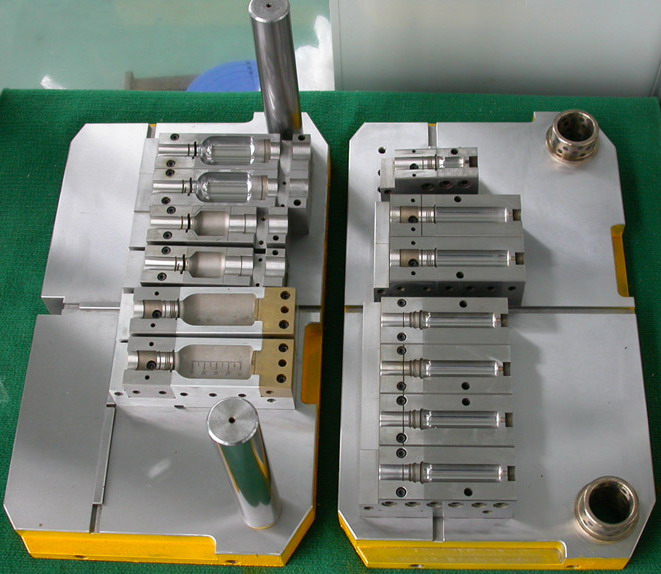

The products features of lBM Mould

1. Excellent Mechanical Strength, impact-resisting, and noncracking
2. Bottle mouth and thread are of precise measurement, to ensure well fitment with cap.
3. Plastic Medicine Bottle’s safe thread can be molding directly, to ensure well fitment with cap.
4. The size and weight of the product can calculate and design precisely to ensure the sizes tolerance requirement.
5. The surface ofthe bottle mouth, neck and the body isgood luster and smooth, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no flashing.
7. During the production, there is no wasted material.
